Description
linamar gear Linamar C7 CorvetteLinamar C7 Corvette Ring & Pinion Description Package Includes: (1) Ring and Pinion Gear Set (Choose Ratio Above) Rigid Axle's aftermarket ring and pinion gear sets are made from heat treated 8620 steel. Our aftermarket gear set is made using a five cut, face milled manufacturing process. Once set up correctly, this will give a square contact pattern on the drive and coast side of each tooth. We are proud of our ring and pinion lines, and you will be

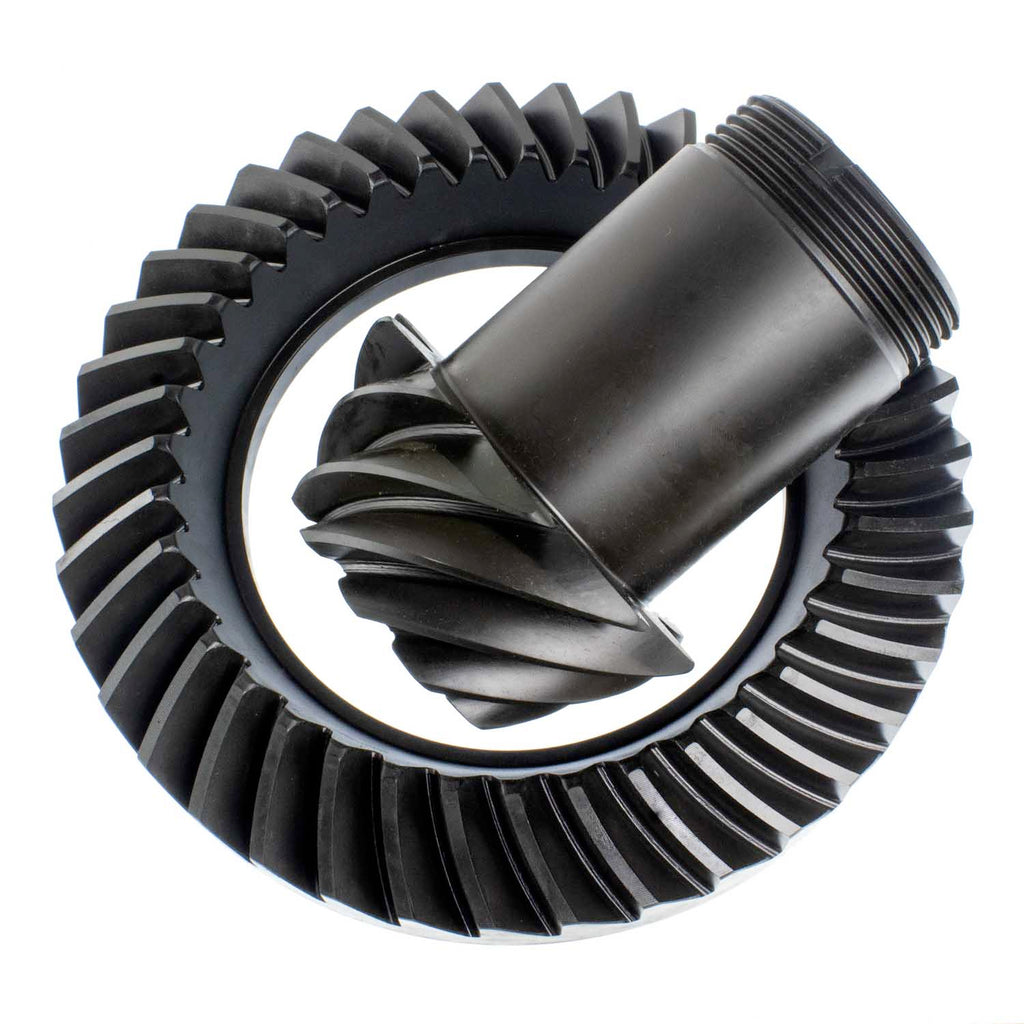

Linamar C7 Corvette - Ring & Pinion
Description
Package Includes:
(1) Ring and Pinion Gear Set (Choose Ratio Above)
- Rigid Axle's aftermarket ring and pinion gear sets are made from heat treated 8620 steel. Our aftermarket gear set is made using a five-cut, face milled manufacturing process. Once set up correctly, this will give a square contact pattern on the drive and coast side of each tooth. We are proud of our ring and pinion lines, and you will be too!
- Remember to properly break in your new gear set! Click here for instructions!
- Rigid Axle is proud to offer our customers a full line of differential, transfer case, and transmission parts. We specialize in complete rebuild kits for domestic cars and trucks. Give us a call with your year, make, and model and we'll build you a custom kit for your build!
Applications
- Chevrolet Corvette (2014-2019)
Specifics
- Differential Model: Linamar C7 Corvette
- Cover Bolt Quantity: 9
- Carrier Breaks: 2.73 / 3.15
- Carrier/Axle Spline Count: 41
- Ring Gear Diameter: 8.66”
- Ring Gear Rotation: Standard
- Ring Gear Material: 8620 Steel
- Ring Gear Bolt Quantity: 10
- Ring Gear Bolt Size: 3/8" X 24 RH
- Pinion Diameter: 2.535"
- Pinion Spline: 30
