Description
foot pedal potentiometer Foot Throttle FP-6 Style 0-5K Footpedal for Curtis EV Potentiometer Ty – WorkPlatformsPartsFoot Throttle FP 6 Style 0 5K Footpedal for Curtis EV Potentiometer Type 0 5 Ohm Applications: Fit for Curtis EV Potentiometer Type 0 5 Ohm Specification: Feature: 0 5K Range: 0 35 Install: 2 M8*125 1 No Connection 2 green Foot Switch 1 input 3 gray Foot Switch 2 input 4 yellow Foot Switch 2 output 5 red Potentiometer High 6 blue Foot Switch 1 output 7 white Potentiometer Wiper 8 black Potentiometer Low We provide high quality series 0 5K throttle.

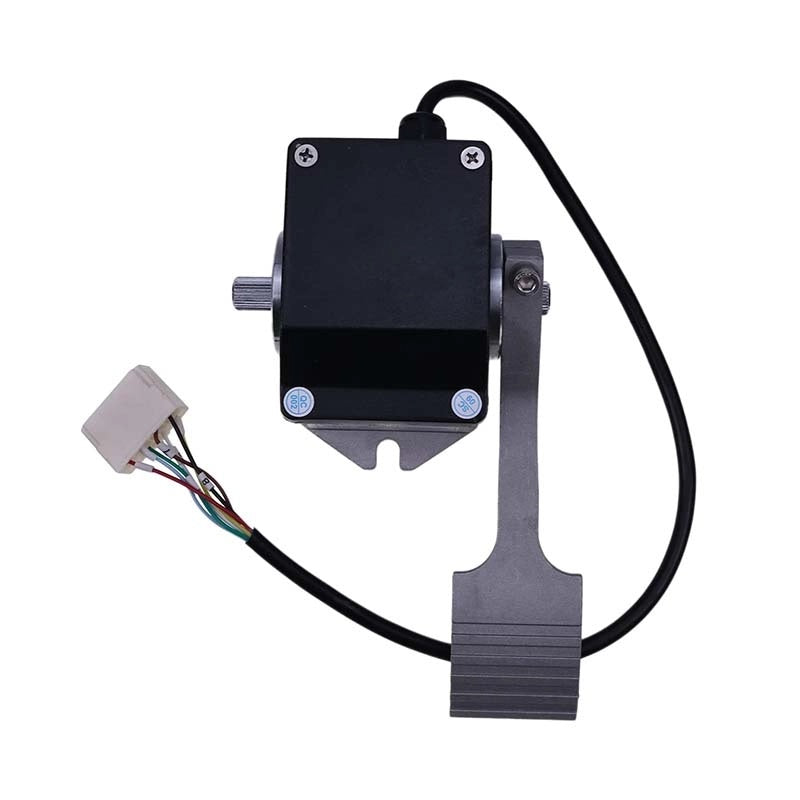

Foot Throttle FP-6 Style 0-5K Footpedal for Curtis EV Potentiometer Type 0-5 Ohm
Applications:
Fit for Curtis EV Potentiometer Type 0-5 Ohm
Specification:
Feature: 0-5K
Range: 0-35°
Install: 2-M8*125
1 - No Connection
2 - green Foot Switch 1 input
3 - gray Foot Switch 2 input
4 - yellow Foot Switch 2 output
5 - red Potentiometer High
6 - blue Foot Switch 1 output
7 - white Potentiometer Wiper
8 - black Potentiometer Low
We provide high quality series 0-5K throttle.
Generally we supply it with 7-wire cable
